E+G GN 1450 Stainless Steel-Telescopic slides

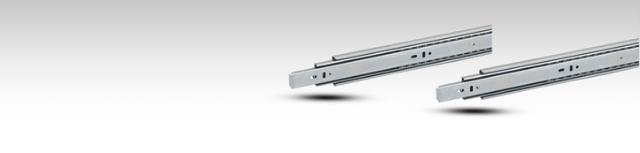

Stainless Steel-Telescopic slides GN 1450 are installed vertically and in pairs. The stroke reaches ≈ 100 % of the nominal length l1 (full extension).
The telescopic slides are delivered in pairs. They can be installed on the extension on either the left or right side due to the mechanics. All mounting holes are easy to reach through auxiliary holes. Only the mounting holes are shown, but other production-related holes may be present.
The telescopic slides are with rubber stop, locking device in back, detach function.
Slides are made from stainless steel AISI 304
Ball cage of outer slide in plastic
Ball cage of inner slide in stainless steel AISI 304
Rubber stop and detach function in plastic/elastomer
Roller bearing grease, FDA-compliant.
Operating temperature -20 °C to 100 °C
Datasheet GN 1450
