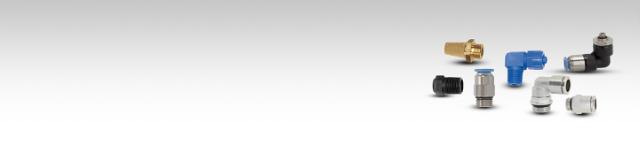

Pneumatic fittings

Push-in fittings

Push-in fittings. Universally resistant – when particularly aggressive media are conveyed through a pipe system, tough and durable stainless steel is the ideal choice of material. These push-in fittings also good in environments with a high risk of corrosion.

Push-in fittings (nickel-plated)

Pneumatics fittings in nickel-plated brass. Straight, T-connectors, reducers etc.

Flow Control - Flow Valve

For cylinder flow, valve flow or throttling both ways. Available in nickel-plated brass/plastic, nickel-plated brass, with thumb screw or slotted as push-in, push-on or threaded type.

Stop Valve

Stop valve where the air flow is stopped by removing the hose and restored by push-in hose. Flow is only possible when the hose is installed correctly. Particularly suitable for use in test and development applications.

Pneumatics Mini Push-in fittings

Mini push-in fittings are ideal when space is limited. Thanks to a compact design you can install them where normal fittings are not are not sufficiently compact. Nickel-plated brass/plastic construction. Pressure range: vacuum up to max. 10 bar. Temperature: 0-60° C.

Pneumatics silencers
 Silencers are a simple and effective way to secure installations. Available in several different designs, materials and thread sizes.
Pneumatics Metal Push-in fittings
 Push-in fittings with nickle-platet brass body, stainless steel ring and with NBR seal. Particularly suitable for applications requiring a good metal fitting during normal pressure and temperature conditions. Pressure Range: Max. 16 bar. Temperature: -20 ° C to 80 ° C
Pneumatics Metal Push-in, FPM
The Push-in fitting, designed with body and release ring in nickel plated brass, stainless steel ring and with FPM O-ring is particularly suitable for applications with high temperature areas.Pressure range: 0-16 bar. Temperature: -20° C to 150° C
Pneumatics st. steel push-in

Push-in fittings in stainless steel (1.4404), is particularly suitable for aggressive environments or for use in areas with high temperature. Suitable for food and medical applications.Pressure range: 0-25 bar. Temperature: -40 ° C - 200 ° C

Pneumatics Metal Push-on

Nickel plated brass. Versions with cylindrical thread has Burna-N gasket which provides a durable and flexible fitting. Pressure range: Max. 18 bar. Temperature: 0 ° C - 60 ° C. Temperature for versions with FKM-gasket and without gasket: -20 ° C - 130 ° C.

Pneumatics st. steel Push-on fittings

Push-on fittings in stainless steel (1.4404), is particularly suitable for aggressive environments or for use in areas with high temperature. Suitable for food and medical applications.Pressure range: 0-25 bar. Temperature: -40 ° C - 200 ° C

Pneumatics Push-on, POM

Push-on fittings in acetal polymer (POM) provides a durable and flexible fitting. A good alternative to metal push-on fittings. Pressure range: max. 18 bar. Temperature: 0 ° C to +70 ° C
Pneumatics Push-on poly. fittings

Polyamide push-on fittings, body in poylyamid (PA), compression ring and nut in polypropylene (PP), is in impact resistant and UV-resistant plastic, very weather resistant. Good chemical resistance to gasoline and diesel, as well as bases. Not suitable for acids. Pressure range: 1-10 bar

Pneumatics tube connectors
Polyamide (PA6) or acetal polymer (POM). Also available in nickel-plated brass and stainless AISI316. Polyamide: Pressure max. 10 bar. Temp. -40° C to 90° C. Acetal polymer: Pressure max. 10 bar. Temp. -40° C to 90° C Nickel-plated brass: Pressure max. 60 bar. Temp. max. 150° C.
Pneumatics, bite-type tube fittings
Bite-Type Tube Fittings provides an optimal and close connection. A fitting frequently used in hydraulic applications.Pressure Range: Max 60 bar. Temperature: Max 150 ° C
Pneumatics distributor blocks
Distributor manifold in aluminum. Outputs in one or both sides. Selectable with 2, 4, 6 or 8 outputs in thread sizes from M5, G1/8 "G1/4", G3/8 "and G1/2".Pressure range: 0-12 bar. Temperature: -40° C to 200° C
Pneumatics, function fittings
For control of air with pneumatic built-in fittings. Available with built-in valve function 2/2 or 3/2 - mechanically. Pilot operated, check valve or pilot operated shut-off valve. Also available as a regulator. Push-in, push-on or complete thread type. Pressure: 0-10 bar. Temperature: 0° to 70° C.
