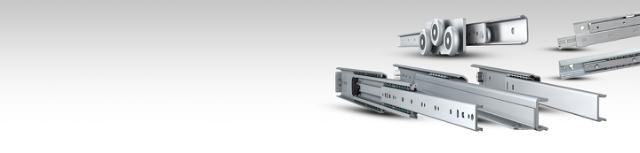

Telescopic Slides

Find your telescopic slide

We have gathered all Th. Regout telescopic slides in one group. If you know the type of slide will search for  we recommend that you go directly to the group.

Are delivered without screws.

For installation use the following screws:
In metal: M DIN 965
In wood: M DIN 7997
Th. Regout EMS telescopic slides

Type EMS: With two joints. Extension up to 75%. Load capacity up to 35 kg.

Stock are showed in pairs (2 pcs)

Are delivered without screws.

For installation use the following screws:
In metal: M DIN 965
In wood: M DIN 7997
Th. Regout FINN telescopic slides

FINN: Extension up to 75% Load capacity up to 81 kg. Double FINN: Extension up to 130% Load capacity up to 74 kg (vertical). Load capacity up to 45 kg (horizontal).

Stock are showed in pairs (2 pcs)

Are delivered without screws.
For installation use the following screws:
In metal: M DIN 965
In wood: M DIN 7997
Th. Regout ADO telescopic slides

Type ADO: Extension up to 75% Load capacity up to 104 kg (vertical). Load capacity up to 60 kg (horizontal).

Stock are showed in pairs (2 pcs)

Are delivered without screws.
For installation use the following screws:
In metal: M DIN 965
In wood: M DIN 7997
Th. Regout SOLAR S telescopic slides

Type SOLAR S: With 3 joints. Extension up to 135% Load capacity up to 135 kg.

Stock are showed in pairs (2 pcs)

Are delivered without screws.

For installation use the following screws:
In metal: M DIN 965
In wood: M DIN 7997
Th. Regout ULF HD telescopic slides

Type ULF HD: With 3 joints. Extension up to 130%. Load capacity up to 204 kg.

Stock are showed in pairs (2 pcs)

Are delivered without screws.
For installation use the following screws:
In metal: M DIN 965
In wood: M DIN 7997
Th. Regout ULF HD BILEX telescopic

ULF HD Bilex is a full two way extension. Load capacity vertically max. 138 kg. Load capacity horizontally max. 34,5 kg.

Stock are showed in pairs (2 pcs)

Are delivered without screws.
For installation use the following screws:
In metal: M DIN 965
In wood: M DIN 7997
Th. Regout TITAN telescopic slides

Type TITAN: With 3 joints. Extension up to 130% Load capacity up to 275 kg.

Stock are showed in pairs (2 pcs)

Are delivered without screws.

For installation use the following screws:
In metal: M DIN 965
In wood: M DIN 7997

Th. Regout TITAN telescopic slides

Type TITAN: With 3 joints. Extension up to 130% Load capacity up to 275 kg.

Stock are showed in pairs (2 pcs)

Are delivered without screws.

Use the following type for installation:

In metal: M DIN 965
In wood: M DIN 7997

Th. Regout CONDOR telescopic slides

Type CONDOR: With 3 joints. Extension up to 150% Load capacity up to 289 kg.

Stock are showed in pairs (2 pcs)

Are delivered without screws.
For installation use the following screws:
In metal: M DIN 965
In wood: M DIN 7997
Th. Regout 4608 telescopic slides

Type 4608: With 3 joints. Load capacity up to 50 kg.

Stock are showed in pairs (2 pcs)

Are delivered without screws.
For installation use the following screws:
In metal: M DIN 965
In wood: M DIN 7997
Th. Regout UDL (Univ. Drawer Lock)

Universal Drawer Lock when you only want to open one drawer at a time. Contact us for more information.

Th. Regout FlexFit

The Th. Regout FlexFit guide is a combination of a profile and a carrier that enables multiple linear motion options. The linear guides are uniquely designed for an easy and fast installation. These ready to use products are made of high quality components to guarantee a long service life. The FlexFit linear guides are typically used in vending and self- checkout machines, special vehicles and tooling cabinets.

Ready to use product (no adjustment of carrier needed)
No play in guidance during lifetime
Easy and fast installation
Smooth movement
Available in 3 and 5-wheel carriers
Available in steel and stainless steel
Customized fixations possible
Easy pairwise application
Endstops available
Horizontal, vertical & diagonal movement
Competitive price/quality ratio

Th. Regout Supreme telescopic slides

Thomas Regout extra heavy-duty telescopic slide with 2000 kg load capacity.
The Supreme telescopic slide provides a highly accurate and smooth-running movement under considerable loading.
It is very robust and has a compact design making it perfect for various applications such as special vehicle applications and machine building applications.
The Supreme range is available in interchangeable steel, stainless steel, aluminium and bi-directional/bilex options.

Features and benefits:
- Load capacity up to 2 tons
- Very robust and compact design
- Low deflection
- Standardized hole pattern
- Very rigid and stiff
- Different materials for different applications
- Customization: length and extension (from 50 up to 200%)
- Long life under several conditions

GN 2402 Linear motion bearings

Elesa-Ganter linear motion bearings GN 2402 with inside traversal distance are used e.g. for storing drawers and sliding doors or in jigmaking for the traversal in linear direction. The traversal distance of the runner lies within the length of the rail l1. Limiting the maximum traversal distance should be ensured by external elements; the supports of the rail have been designed to guard against the inadvertent extraction of the runner.

Rail/Runner: Heat treatable steel
- zinc plated, blus passivated
- Raceways hardened
Balls: Anti-friction bearing steel, hardened
Ball cage: Steel, zinc plate

E+G GN 2404 Telescope bearing

Elesa-Ganter linear motion bearings GN 2404 with inside traversal distance are used e.g. for storing drawers and sliding doors or in jigmaking for the traversal in linear direction. The traversal distance of the runner lies within the length of the rail l1. Limiting the maximum traversal distance should be ensured by external elements; the supports of the rail have been designed to guard against the inadvertent extraction of the runner.

Rail/Runner: Heat treatable steel
- zinc plated, blus passivated
- Raceways hardened
Balls: Anti-friction bearing steel, hardened
Ball cage: Steel, zinc plate

E+G GN 2406 Telescope bearing

Elesa-Ganter linear motion bearings GN 2406 with inside traversal distance are used e.g. for storing drawers and sliding doors or in jigmaking for the traversal in linear direction. The traversal distance of the runner lies within the length of the rail l1. Limiting the maximum traversal distance should be ensured by external elements; the supports of the rail have been designed to guard against the inadvertent extraction of the runner.

Rail/Runner: Heat treatable steel
- zinc plated, blus passivated
- Raceways hardened
Balls: Anti-friction bearing steel, hardened
Ball cage: Steel, zinc plate

E+G GN 2408 Telescope bearing

Elesa-Ganter linear motion bearings GN 2408 with inside traversal distance are used e.g. for storing drawers and sliding doors or in jigmaking for the traversal in linear direction. The traversal distance of the runner lies within the length of the rail l1. Limiting the maximum traversal distance should be ensured by external elements; the supports of the rail have been designed to guard against the inadvertent extraction of the runner.

Rail/Runner: Heat treatable steel
- zinc plated, blus passivated
- Raceways hardened
Balls: Anti-friction bearing steel, hardened
Ball cage: Steel, zinc plate

E+G GN 2410 Telescope bearing

Elesa-Ganter linear motion bearings GN 2410 with inside traversal distance are used e.g. for storing drawers and sliding doors or in jigmaking for the traversal in linear direction. The traversal distance of the runner lies within the length of the rail l1. Limiting the maximum traversal distance should be ensured by external elements; the supports of the rail have been designed to guard against the inadvertent extraction of the runner.

Rail/Runner: Heat treatable steel
- zinc plated, blus passivated
- Raceways hardened
Balls: Anti-friction bearing steel, hardened
Ball cage: Steel, zinc plate

E+G GN 1450 telescopic slide

E+G GN 1450 Stainless Steel-Telescopic slides

Stainless Steel-Telescopic slides GN 1450 are installed vertically and in pairs. The stroke reaches ≈ 100 % of the nominal length l1 (full extension).

The telescopic slides are delivered in pairs. They can be installed on the extension on either the left or right side due to the mechanics. All mounting holes are easy to reach through auxiliary holes. Only the mounting holes are shown, but other production-related holes may be present.

The telescopic slides are with rubber stop, locking device in back, detach function.

Material:
Slides are made from stainless steel AISI 304
Ball cage of outer slide in plastic
Ball cage of inner slide in stainless steel AISI 304
Rubber stop and detach function in plastic/elastomer

Lubricant:
Roller bearing grease, FDA-compliant.
Operating temperature -20 °C to 100 °C

E+G GN 1460 telescopic slide

E+G GN 1460 Stainless Steel-Telescopic slides

Stainless Steel-Telescopic slides GN 1460 are installed vertically and in pairs. The stroke reaches ≈ 100 % of the nominal length l1 (full extension).

The telescopic slides are delivered in pairs. They can be installed on the extension on either the left or right side due to the mechanics. All mounting holes are easy to reach through auxiliary holes. Only the mounting holes are shown, but other production-related holes may be present.

The telescopic slide comes with rubber stop, locking device in back, detach function.

Material:
Slides, ball cage and housing  made from stainless steel AISI 304
Rubber stop and detach function made from plastic/elastomer

Lubricant: Roller bearing grease, FDA-compliant
Operating temperature -20 °C to 100 °C

E+G GN 1490 telescopic slide

Elesa+Ganter GN 1490 Linear guide rail system.

Installed in pairs, with a horizontal alignment, either vertically (as shown) or perpendicularly. They are used where simple, linear movements must be executed, such as in automation or in vehicle or machine engineering. The guide rail can be installed on either the left or right side of the application. During installation of the cam roller carriages, the direction in which the load is received (marking notch) must be taken into account. The lubrication and maintenance instructions must be followed. The parts are delivered unassembled.

Types:
Type A3: with one cam roller carriage with 3 rollers
Type A5: with one cam roller carriage with 5 rollers
Type B3: with two cam roller carriages with 3 rollers
Type B5: with two cam roller carriages with 5 rollers

Identification no.
No. 0: without end stop
No. 1: with one end stop
No. 2: with two end stops

Material:
Guide rail
- Type ZB: Zinc plated steel, blue passivated
- Type NI: Stainless Steel 1.4016, blank

Cam roller carriage
- Base body in Stainless Steel AISI 304
- Roller with ball-bearing, 2RS, Stainless Steel 1.4125
- Roller bearing grease is FDA compliant, class H1 (permanent lubrication)

End stop in Stainless Steel AISI 304
Operating temperature -20 °C to 100 °C

Hepco HTS drawer slides

The Hepco HTS range of industrial drawer slides provide a high quality low cost solution for loads up to 280kg.

These linear slides are suitable for applications such as the opening and closing of cabinets and for guiding electrical equipment.

• Smooth movement over the entire travel distance.
• A unique super slim series where space is at a premium for light duty loads.
• Units feature lock out facility to prevent accidental closure.
• Special lengths available.
• Zinc plated or stainless steel options depending upon corrosion resistance requirements.

Accessories telescopic slides

Soft close systems, integrated slide lock bases, bumpers, slotted pin brackets etc. Please see PDF for types etc.

E+G compact telescopic slides

Soft close systems, wheels etc.
